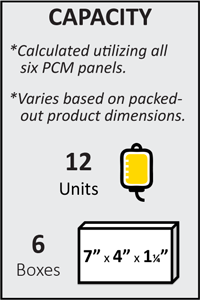

Cool-Cube-08-Capacity-12u-6-yellow
Cool-Cube-08-dims-front
Cool-Cube-08-dims-top
Cool-Cube-blue-included

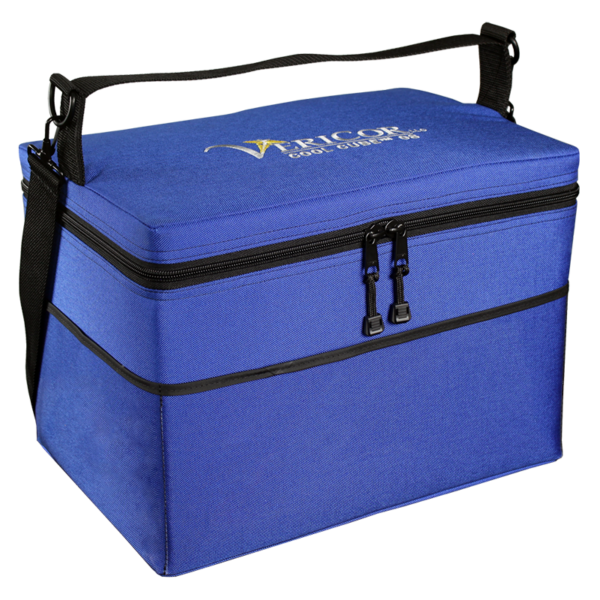

Cool Cube™ 08 at Controlled Room Temps

For FFPE, Platelets & Other 20-24°C Products
SKU:
RT-08

A laboratory qualified cooler and packout system that utilizes PCM technology to keep product 20-24°C for 66+ hours without the need for electricity, ice or buffering material. Ideal for extended transportation/storage of life-saving product.

$799.00

Fridge Temps PCM System for Cool Cube™ 08 (6 Panels)

A set of six panels containing phase change material (PCM) that is nontoxic & biodegradable. These panels for the Cool Cube™ 08 provide advanced thermal protection for refrigerated product due to a 4.5°C/40.1°F melting point (temperature hold).

Memory-Loc™ Temperature Monitoring & Data Logger Kit

A data logging thermometer that locks over 1 million temperature observations (good for 21 CFR 11 environments). This calibrated logger has user-defined time intervals, downloads data to any USB stick, and meets current CDC requirements.

The Cool Cube™ 08 at Controlled Room Temperatures (RT-08) is not an ordinary transport cooler (FFPE, platelets and biospecimens carrier). It is an easy-to-carry, qualified container and pack-out system that keeps temperature sensitive product (FFPE, platelets, biospecimens) between 20° to 24°C for 66+ hours, and 15° to 25°C for over 3 days – without using ice or electricity! This cooler is ideal for transport, but also excels at protecting valuable product during off-site use and power outages, regardless of hot or freezing conditions. The simple, validated, patented technology is the best compact thermal protection product available to maintain the cold chain!

Technology & Features

magnifying 08
cutaway blue with numbers
exploded-Cool-Cube™-blue

Phase Change Technology





Cool Cube™ PCM (phase change material) is engineered to maintain a constant temperature at a specific melt/freeze point. PCM empowers the user with a safe, effective means to maintain the temperature of valuable product.

Temp-Shield™ Insulation






Vacuum insulated panels (VIPs) offer advanced thermal protection far superior to other types of insulation. The temperature-holding qualities ensures the user a long-lasting, consistent temperature hold for days.

Transport Case




Each outer case is built with mobility in mind. Various features enable the user to move with confidence and know the contents are well protected (and at the correct temperature) during transit and use.

Additional Features

PCM Panels

VIP System

  • Six panels for controlled room temperatures included.
  • Patented, beveled-edge design seamlessly fit together.
  • Panels are interchangeable with other temperature systems.
  • Reusable (10,000+ cycles)
  • Reinforced, clear-plastic, protective wrap.
  • Rigid structure is durable and light.
  • 5x the resistance (R-value) of conventional insulation.
  • Removable and replaceable.

Dimensions & Specs

Outside: 16″ x 11½” x 11½”
Inside: 11¼″ x 6½” x 6½”
Weight: 17 lbs.

Cool-Cube-08-Capacity-12u-6-yellow
Cool-Cube™-08-Front-Dims
Cool-Cube™-08-Top-Dims
Cool-Cube™-08-top-open-RT-250x300 a
stamp-validated-s

Easy & Safe Pack-Out

Step 1 Remove PCM from Cool Cube™
Remove
Step 2 Prep PCM Panels
Prep
Step 3: Assemble Cool Cube™
Assemble
Step 4: Pack-Out Cool Cube™
Pack-Out
Step 5: Close Cool Cube™
Close

EXTENDED TRANSPORT


No worries for several days! This validated system will hold 15-25°C (59°-77°F) or 20-24°C (68°-75°F) for an extended time, even in harsh environments. It is long-lasting, passive temperature-controlling technology when you need it most.

extended transport a
off-site initiatives

OFF-SITE INITIATIVES

Ideal for outreach clinics and field missions! This easy-to-use system eliminates the complicated steps found with other methods, and simplifies/expedites the pack-out process. Packed with mobility features, it can go anywhere it’s needed.

EMERGENCY BACKUP


A great solution to keep things safe during power outages! Since it does not rely on ice or electricity, next time the lab incubator goes down have this storage AND transport solution as a backup. Reduce the risk with a Cool Cube™.

emergency backup naloxone
have-questions-plus-number-2

All Series-22 Prep Methods










Series 22 Prep Method: A – Lab Incubator Prep to keep product cool




Prep Time: Stage 1 ≈ 3 hours / Stage 2 (prior to pack-out) none




Series 22 - Prep Method A - Lab Incubator Prep to keep product cool







Panel Prep Stages (lab incubator)




1. Store panels in a lab incubator (or other 15-20°C environment) so PCM (phase change material inside the panel) is solid (i.e. 24 hrs. @ 15°C). Shake to verify.




If the incubator temperature is ever warmer than 21°C, panels may not get completely solid (manufacturing tolerances). If stored within the temperature parameters of the product, but are still liquid, panels may be used but the hold time will decrease. Although panels are liquid, the PCM inside is at the temperature of storage environment after 3 hours (i.e. stored in a 22°C incubator, the PCM panels are at 22°C). Assembling the Cool Cube™ with this additional thermal mass will keep product at room temperature, just for a shorter amount of time than the lab-validated results.








Before assembly, shake panels to estimate the state of the PCM. Solid PCM panels will keep product cool in extreme heat the longest. Liquid PCM panels may be used but hold times will decrease.












Series 22 Prep Method: B – Fridge/Room Prep to keep product cool




Prep Time: Stage 1 ≈ 2 hours / Stage 2 (prior to pack-out) ≈ 2 hours




Series 22 - Prep Method B - Fridge-Room Prep to keep product cool







Panel Prep Stages (fridge to room)




1. Store panels in a fridge so PCM (phase change material sealed inside the panel) is solid. Shake to verify.







        • i.e. 2 hrs. @ 4°C turns PCM solid








2. Transfer panels into a fridge 2 hours prior to use to allow PCM inside to rise to the appropriate operating temperature.




Shake PCM Panel To Check



As soon as any liquid can be heard inside the panel, the PCM is at or above 21.5°C.








Before assembly, shake panels to estimate the state of the PCM. Solid PCM panels will keep product cool in extreme heat the longest. Liquid PCM panels may be used but hold times will decrease.








Series 22 Prep Method: C – Lab Incubator Prep to keep product warm




Prep Time: Stage 1 ≈ 3 hours / Stage 2 (prior to pack-out) none




Series 22 - Prep Method C - Lab Incubator Prep to keep product warm







Panel Prep Stages (lab incubator)




1. Store panels in a lab incubator (or other 23-25°C environment) so PCM (phase change material inside the panel) is liquid (i.e. 24 hrs. @ 25°C). Shake to verify.




If the incubator temperature is ever colder than 23°C, panels may not get completely liquid (manufacturing tolerances). If stored within the temperature parameters of the product, but are still solid, panels may be used but the hold time will decrease. Although panels are solid, the PCM inside is at the temperature of storage environment after 3 hours (i.e. stored in a 21°C incubator, the PCM panels are at 21°C). Assembling the Cool Cube™ with this additional thermal mass will keep product at room temperature, just for a shorter amount of time than the lab-validated results








Before assembly, shake panels to estimate the state of the PCM. Liquid PCM panels will keep product warm in cold conditions the longest. Solid PCM panels may be used but hold times will decrease.












Series 22 Prep Method: D – Room Prep to keep product warm




Prep Time: Stage 1 ≈ 3 hours / Stage 2 (prior to pack-out) none




Series 22 - Prep Method D - Room Prep to keep product warm







Panel Prep Stages (room)




1. Store panels in a room temperature environment that is warmer than 22°C but cooler than the warmest temperature needed.




Panels will be liquid and at the temperature of the storage environment after 3 hours (i.e. stored in a 26°C room, the PCM panels are at 26°C).








Before assembly, shake panels to estimate the state of the PCM. Liquid PCM will keep product warm in cold conditions the longest. If PCM has started to solidify, panels may be used but hold times will decrease.

About Series 22 PCM Passive Temperature Technology

Thermal Properties of Series 22 PCM Panels


Phase change materials (PCMs) are materials that absorb and release thermal energy during the process of melting and freezing. When a PCM melts, it absorbs the heat from the environment, yet its temperature stays at the melting point until totally liquid. Conversely, when a PCM freezes, it absorbs the cold from the environment, yet stays at its temperature until totally solid. This makes PCM an ideal, passive solution for a variety of applications that require temperature control. The most common PCM is water/ice. Ice is an excellent PCM for maintaining temperatures at 0°C. But water’s freezing point is fixed at 0°C (32°F), which makes it unsuitable for most temperature sensitive applications.

Cool Cube™ PCMs offer custom temperature holds based on their melting point. The PCM inside Series 22 panels has a melting point of 21.5°C/70.7°F. When panels are solid, contents within the Cool Cube™ stay at room temperature (around 21.5°C) in hot conditions during an extended period of time. When panels have liquid inside, contents within the Cool Cube™ won’t get cold (again at room temps around 21.5°C) in cold conditions during an extended period of time.







Series 22 PCM - ISTA 7D Thermal Performance Study Temperature Hold Times






Cool Cube™ User Guide







Cool Cube™ User Guide
Cool Cube™ User Guide
Cool-Cube%E2%84%A2-User-Guide-pdf-web-022718.pdf
Version: 02

Cool-Cube™-with-series-22-PCM-&-Dims

Room Temps Temps Hold Time:

Hold-temps-Series-22 PCM

PCM Panel Prep Steps Sequence

  • Always prep the PCM panels before use according to one of the described methods provided by VeriCor.








  • Ensure all components are clean and free of damage.








  • During prep, enable ample air flow around all panel sides (use spacers or racks).







    PCM Panel Spacing Customer Solution








  • Lay panels flat when “freezing”.








  • Freeze/melting times vary depending on number of panels being prepped and equipment specifications being used. Assemble using all six panels for maximum hold time.














  • Using less panels does not change the holding temperature but does decrease hold time.








  • Panels are reusable (10,000+ cycles). (End-of-life disposal: panels use a plastic #2, typically recycled by businesses/communities; PCM is nontoxic and readily biodegradable.)








  • Use a calibrated data logger or other temperature monitoring device to observe internal temperature.








  • Avoid unnecessary opening of the Cool Cube™ after loading payload. Opening of the Cool Cube™ will decrease hold time.








  • An infrared temperature thermometer can assist in ensuring the panels reach a safe pack-out temperature (good for finding out the approximate temperature of each panel).








  • Further the temps are away from the melting point, the quicker PCM will change states.





CLICK & PRINT DOWNLOADS (PDF)

have-questions-plus-number-2

FAQs

Search FAQs


RT-08 Specific FAQ

For recomended, use RT-08 PCM panels should be conditioned for at least 48 hours.
The RT-08 when properly conditioned will last 69+ FT-28 hours.
To prevent warming, store panels between 15° and 21°C for at least 48 hours. Prior to use, shake panels to verify substance inside is solid (no liquid can be heard). If solid, PCM panels are at the temperature they were being stored at and are ready to assemble.
To prevent cooling, store panels between 23° and 25°C for at least 48 hours. Prior to use, shake panels to verify all substance inside is liquid (not a solid). If liquid, PCM panels are at the temperature they were being stored at and are ready to assemble.
For storage of items outside the case (monitor, paperwork, pens, etc.).

Load More


Room Temperatures Specific Cool Cubes™

The PCM inside is NOT below its phase change temperature of 4.5°C/40.1°F. Make sure that the storage temperature is always below 4°C/39.2°F.
Formalin-Fixed Paraffin Embedded – used for tissue sample preservation and archiving.

Load More


General Cool Cube™

Components

Yes. All components are available for purchase. Click Here
All components are available for purchase.
A plastic panel filled with phase change material. Each Cool Cube™ comes with 6 PCM panels that make up the PCM System.
The VIP (Vacuum Insulation Panel) System consists of 6 panels that form an insulation barrier for the Cool Cube™. Each panel is a specially formed rigid foam board, shrink wrapped, encased in a metallic plastic film, and sealed under vacuum.
A miniature bottle filled with nontoxic glycol solution.
Phase Change Material – a substance with a high heat of fusion which, melting and solidifying at a certain temperature, is capable of storing and releasing large amounts of energy.
Vacuum Insulation Panel – a form of thermal insulation consisting of a gas-tight enclosure surrounding a rigid core, from which the air has been evacuated.

Load More


Conditioning

The PCM inside is NOT below its phase change temperature of 4.5°C/40.1°F. Make sure that the storage temperature is always below 4°C/39.2°F.
The PCM inside is NOT below its phase change temperature of 21.5°C/70.7°F. Make sure that the storage temperature is always below 20°C/68°F.
The PCM inside is NOT below its phase change temperature of -21.5°C/-6.7°F. Make sure that the freezer temperature is always below -23°C/-9.4°F.
Yes for Cool Cubes™ at Fridge Temps. However before pack-out, the panels must sit-out and warm-up until they “sweat” so that they don’t make the cooler too cold.
Yes for Cool Cubes™ at Fridge Temps. Make sure the refrigerator temperature is below 4°C to ensure panels turn solid.
Yes, but to get the panels truly hard the freezer must maintain a temperature lower than -23°C. Otherwise the panel will be at the temperature of the freezer and just won’t last as long.
Yes, but they will just take longer to condition (the middle panel will be the last to condition). For the quickest conditioning process, get as much air circulating around the panel as possible.
No, only the PCM panels.
The PCM inside is above its phase change temperature. (Used to prevent cooling.)
The PCM inside is at its phase change temperature. (Used to prevent cooling or warming.)
The PCM inside is below its phase change temperature. (Used to prevent warming.)

Load More


Maintenance

With the two smaller models the fabric case can be hand-washed and air-dried. With the hard-sided models the case can be wiped down.

Load More


Pack Out

Formalin-Fixed Paraffin Embedded – used for tissue sample preservation and archiving.
Vacuum Insulation Panel – a form of thermal insulation consisting of a gas-tight enclosure surrounding a rigid core, from which the air has been evacuated.
No, but all six panels will maintain a consistent temperature the longest. The fewer the panels, the shorter the temperature holding time.
No. The PCM panels are replacements superior to the standard gel pack method of cooling.
No. The PCM panels are replacements superior to the standard ice pack method of cooling.
Not during use. But during storage/conditioning, electricity may be needed to maintain condition the panels properly.
Yes. The large cooler can be locked with a small, steel padlock. The small and medium coolers have double zippers that can be fastened together with a small, cable padlock.
Yes, if they have the same temperature parameters. No, if they require two different parameters.
Yes, just not at the same time. Temperature controlling panels (the PCM System) can be purchased separately and swapped out depending on use.
No. Although it is recommended to have a monitor to keep tabs on the temperature and some filler material (newspaper, bubble-wrap, etc.) to prevent contents from shifting.
To prevent the cooler from warming (in hot conditions), panels should be solid. To prevent the cooler from cooling (in cold conditions), panels should be liquid.
The “series” and color codes are: Series 4 (blue tab) maintains a refrigerated temperature. Series 20M (black tab) maintains a frozen temperature. Series 22 (tan tab) maintains a room temperature.
It can take as little as one hour to condition the PCM panels, and as little as 2 minutes to pack it out. See User Guide for complete instructions.
It can take as little as one hour to condition the PCM panels, and as little as 2 minutes to pack it out. See User Guide for complete instructions.

Load More



Purchasing Related FAQs

Credit Cards

Yes, the major ones.
It can take as little as one hour to condition the PCM panels, and as little as 2 minutes to pack it out. See User Guide for complete instructions.

Load More


Ordering

Order thru GSA or Amazon websites, or directly from this website. For larger orders or for a formal quote please contact us (866-469-6019).

Load More


Pricing

Yes. Discounts start at 10 or more of the same model.
Direct (call or email), on Amazon (direct) or thru a valued distributor (Evolve, Grainger, Illinois Medical Services, Control Solutions, etc.).

Load More


Shipping

Usually 1 to 2 business days depending on stock.
ESTIMATE: Small CC = $16 | Medium CC = $20 | Large CC = $50 | TM = $12 (actual prices may vary depending on location of the customer and exact product shipped).

Load More
