Protect the Cold Chain

Keeping cold chain temperature excursions to a minimum is an important task. It affects the safety and efficacy of valuable, life-saving product (vaccine, blood, medicine, etc.). So when the cold chain is dependent on you…make sure it won’t break!



Whether it is to transport blood, keep varicella frozen after a power outage, or administer vaccine at an off-site clinic, standard coolers and generalized pack-out procedures can be problematic.
Cool Cube™ Protects the Cold Chain

  • Accidental freezing of refrigerated product can occur when ice packs or frozen bottles dip the temperature too low.
  • Complicated pack-out procedures can increase human errors that lead to excursions.
  • Lengthy delays or unforeseen temperatures can become too much resulting in out-of-range temperatures.
There is a solution!



Cool Cube™ PCM Coolers are safe, easy container and pack-out systems for valuable product that hold a consistent temperature for days.

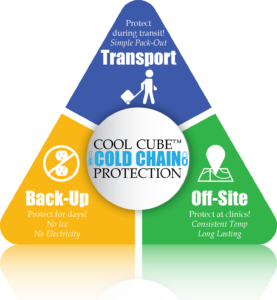

One Cooler—Multiple Uses

Protect the Cold Chain - transport blue

Transport

The simple and quick pack-out system of the Cool Cube™ virtually eliminates transport excursions caused by long transits, varying exposures, and/or human error. Born out of shipping industry standards, these validated cooler & pack-out systems have been thoroughly tested and proven over time.

Protect the Cold Chain - electrical blue

Back-Up

Advanced phase change technology keeps product at the desired temperature for days without needing ice or electricity during blackout situations. Every year customers rave about the thousands of dollars of vaccine that was saved because they had a Cool Cube™ as a back-up to their refrigerator or freezer.

Protect the Cold Chain - remote blue

Off-Site

High thermal-resistant VIPs (Vacuum Insulated Panels) keep the hot/cold outside ambient temperatures at bay for multi-day, off-site use. Because they are portable, compact, and hold a consistent temperature (even with frequent openings), these coolers are ideal for off-site clinic use.

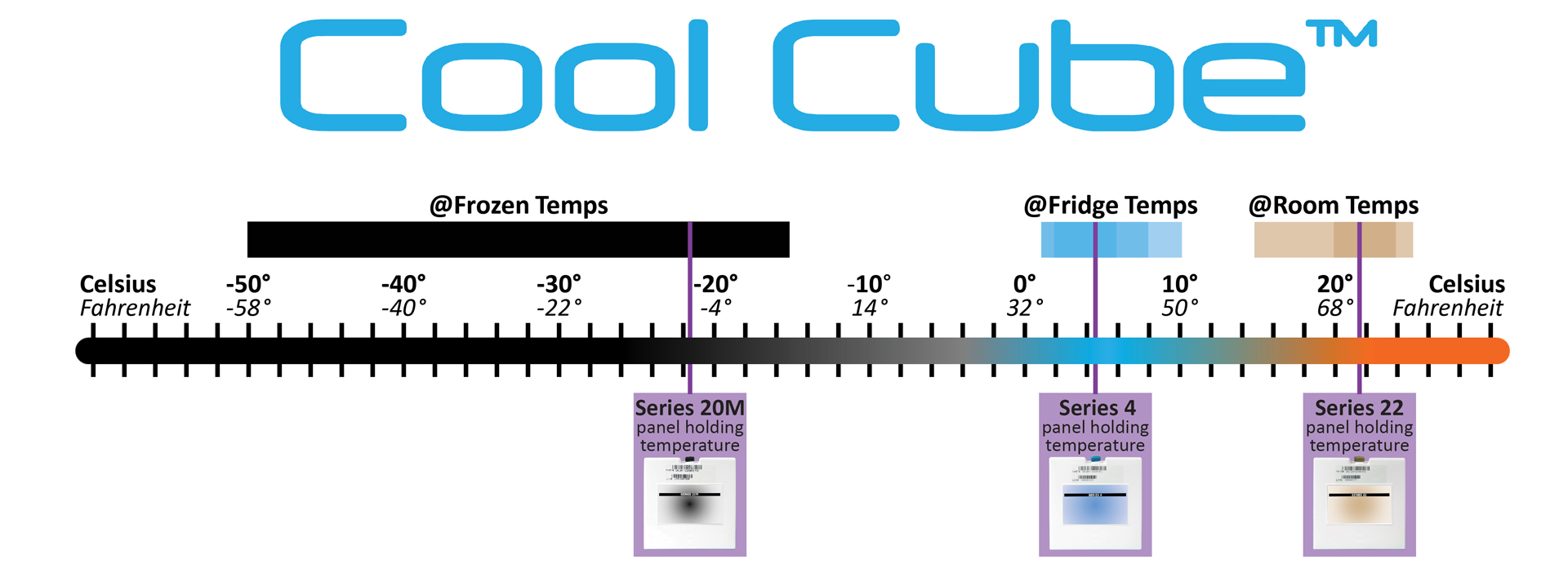

Three Controlled Temperatures

CC-Panel-Temperature-Configurations

The internal temperature of the Cool Cube™ is controlled by easy-to-prep panels containing phase change material (PCM). Panels assemble quickly to form a chamber ready for pack-out…at a temperature that is nearly identical to the product. It’s simple (minimal steps) and safe (no buffering material needed).

Frozen Temps

-50° to -15°C

When a frozen temperature range is needed, Series 20M PCM panels (black) will keep product frozen for days. This dry-ice alternative is far safer and more effective than dry-ice. The advanced phase change technology allows these panels to hover around -21.5°C (-6.7°F) for a long period of time. As a result, product getting too cold or too warm is eliminated and no need for bulky buffering material.








Fridge Temps

2-8°C | 1-10°C | 1-6°C

When a refrigerated temperature range is needed, Series 4 PCM panels (blue) are at the sweet spot of freshness. This ice alternative is far safer and more effective than ice packs. The advanced phase change technology allows these panels to hover around 4.5°C (40.1°F) for a long period of time. As a result, accidental freezing is eliminated as well as the need for bulky buffering material (the coolant is at 4.5°C).



Room Temps

15°-25°C, 20°-24°C

When a controlled room temperature range is needed, Series 22 PCM panels (tan) will keep product at a warm temperature for days, despite being in a cold or hot environment. This ice alternative is far safer and more effective than ice packs. The advanced phase change technology allows these panels to hover around 21.5°C (70.7°F) for a long period of time. There is no need for bulky buffering material.

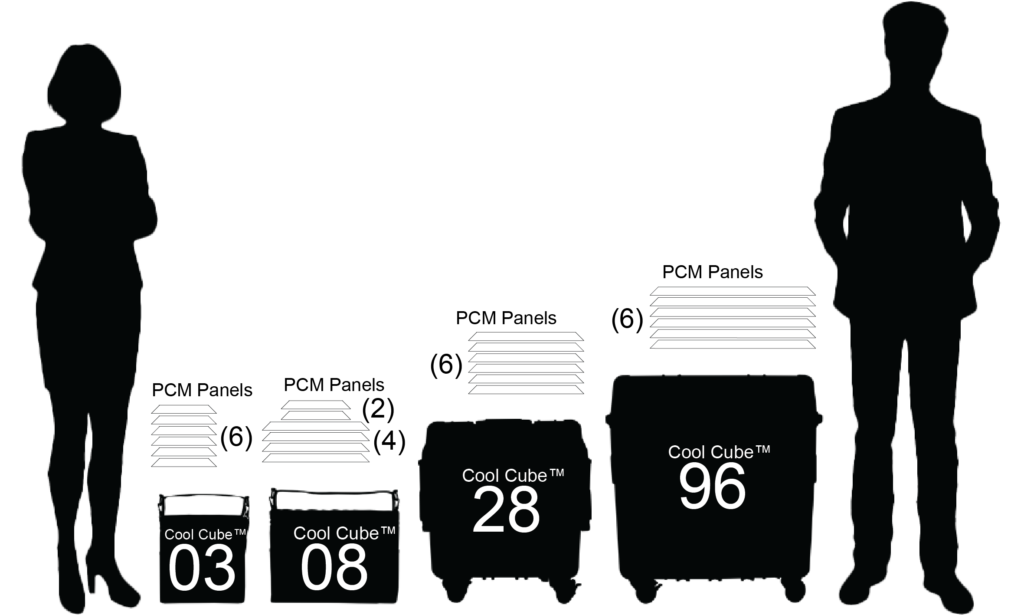

Four Sizes

Cool Cube™ group scaled with people

Cool Cube™ 03

Fridge, Frozen, or Room Temp





At just a bit larger than a lunchbox, the Cool Cube™ 03, is compact enough to tote around, yet big enough for the basics. When using six PCM panels (for maximum duration), the usable space is just under 6” x 6” x 6”. Need more space? Use fewer panels to gain usable area (realizing the in-parameter time duration will be less). A carrying handle, shoulder strap, 5 outside pockets (clear), and a double zipper all create a user-friendly experience. Need to carry a temperature monitor with the product? This Cool Cube™ has that solved with pockets on the outside to hold the monitor and a dual-zipper to go around the cord going into the inside.

Cool Cube ™ 03 Dims

Cool-Cube-03-dims-topCool-Cube-03-dims-front

Cool Cube™ 08

Fridge, Frozen, or Room Temp



The Cool Cube™ 08 is big enough to hold what a single person will want to carry. When using six PCM panels (for maximum duration), the usable space is just over 11” x 6.5” x 6.5”. Need more space? Use just one panel on the bottom to increase capacity by 65% (yet still hold a temperature for nearly 1 day). A carrying handle, shoulder strap, 5 outside pockets (clear), and a double zipper all create a user-friendly experience. Need to carry a temperature monitor with the product? This Cool Cube™ has that solved with pockets on the outside to hold the monitor and a dual-zipper to go around the cord going into the inside.

Cool Cube™ 08 Dims

Cool-Cube™-08-Front-DimsCool-Cube™-08-Top-Dims

Cool Cube™ 28

Fridge, Frozen, or Room Temp





The Cool Cube™ 28 is big enough for preparedness plans or large-scale incidents. When using six PCM panels (for maximum duration), the usable space is just over 12” x 12” x 12”. A Tru-Trac System™ wheel configuration compliments the fold-out handle to move heavy product effortlessly. Need to carry a temperature monitor with the product? This Cool Cube™ has that solved with an outer pocket to hold the monitor and a cord port that allows the probe/cord to go into the case.

Cool Cube™ 28 Dims

Cool-Cube™-28-Front-DimsCool-Cube™-28-Top-Dims

Cool Cube™ 96

Fridge, Frozen, or Room Temp




The Cool Cube™ 96 is a large cooler ready to handle a load. When using six PCM panels (for maximum duration), the usable space is just over 18” x 18” x 18”. Four swivel wheels compliment the pulling strap to move heavy product effortlessly. Need to carry a temperature monitor with the product? This Cool Cube™ has that solved with an outer pocket to hold the monitor and a cord port that allows the probe/cord to go into the case.

Cool Cube™ 96 Dims

Cool-Cube™-96-Front-DimsCool-Cube™-96-Top-Dims

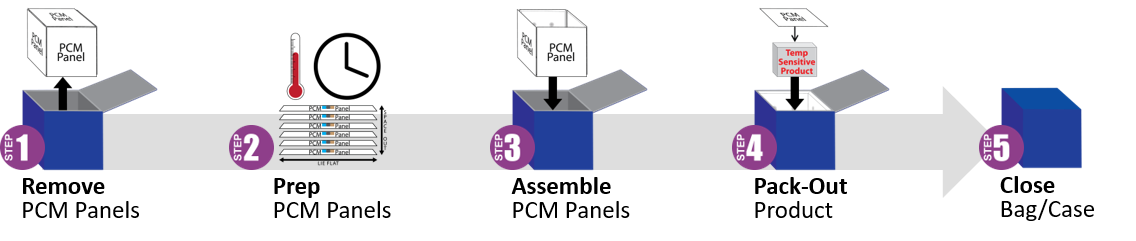

Easy & Safe Pack-Out

Step 1 Remove PCM from Cool Cube™

Remove

Step 2 Prep PCM Panels

Prep

Step 3: Assemble Cool Cube™

Assemble

Step 4: Pack-Out Cool Cube™

Pack-Out

Step 5: Close Cool Cube™

Close

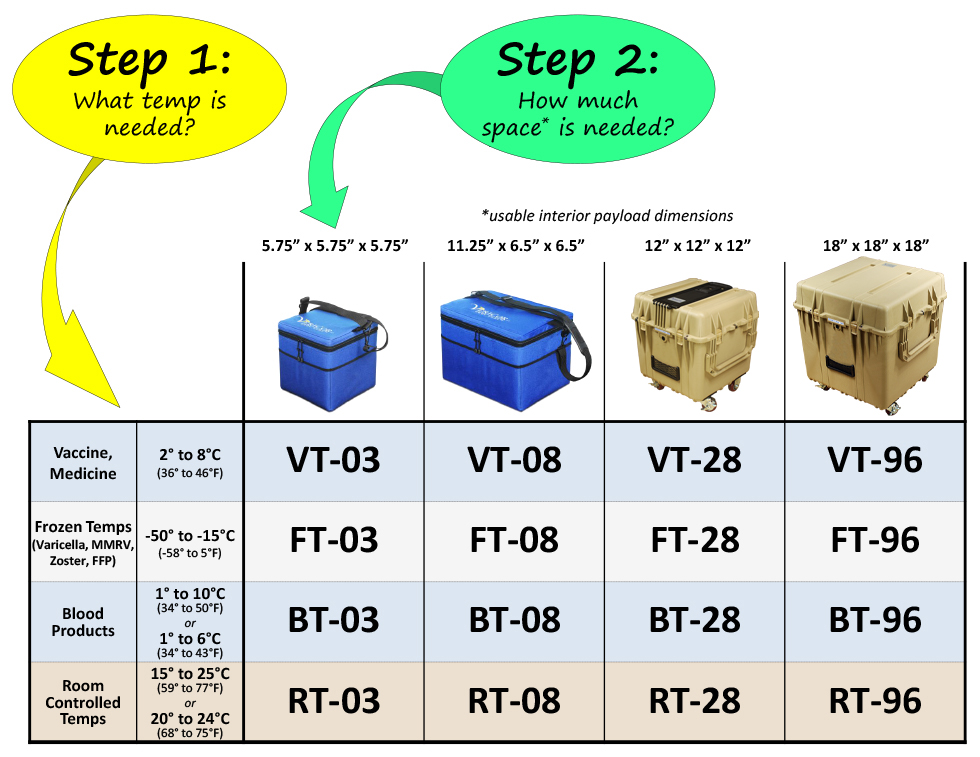

How to pick the right Cool Cube™

Find where the lines intersect…that is the one you want!

Quick Pick Cool Cube™ Table

Check individual product pages for more details (links are on the main menu).

Cool Cube™ PCM Coolers for Temperature Sensitive Product
