Temp Monitoring Support

TMD Support header

(click button to go directly to section)

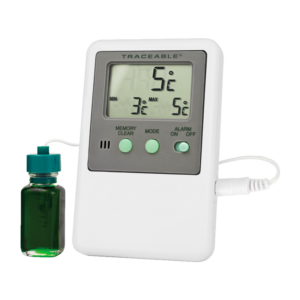

Basic Monitoring

Basic-Monitoring Icon
  • Record Min/Max Temps
  • Programmable Alarm
  • Calibrated (cert. included)




    • Triple display simultaneously shows minimum, maximum and current temperatures (°F/°C switchable).
    • Alarm is programmable in 1° increments, sounds continuously when temperature rises above/falls below set points, and can be manually turned off.
    • Glycol-filled (GRAS by the FDA) bottle insulates the probe sensor from rapid temperature changes.
    • 10’ micro-cable permits coolers and refrigerator doors to close on it.
    • Flip-open stand and wall mount.


Temperature Range:
-50° to 70°C (-58° to 158°F)

Resolution: 1°

Accuracy: ±1°

Dimensions:
4.25” x 2.75” x .75” @ 4 oz.

Probe/Bottle:
2.5” x 1” bottle w/ sealed probe; 10’ cord

Certificate:
multi-point calibration; individually-numbered

Relevant Literature

(click button to go directly to section)

Data Logging

Data-Logging Icon
  • Programmable Logging Interval
  • USB Download (no software)
  • Alarm History Reporting
  • Programmable logging interval from 1 minute to 24 hour observations.
  • USB Download (use any USB flash drive/memory stick).
  • Smart-Alarm™ (signals until acknowledged).
  • Triple display simultaneously shows minimum, maximum and current temperatures (°F/°C switchable).

Temperature Range: -50° to 70°C (-58° to 158°F)

Resolution: .01°

Accuracy: ± .25°

Dimensions: 4.25” x 2.75” x .75” @ 4 oz

Probes/Bottles: 2.5” x 1” bottle w/ sealed probe; 10’ cord

Certificate: multi-point calibration; individually-numbered

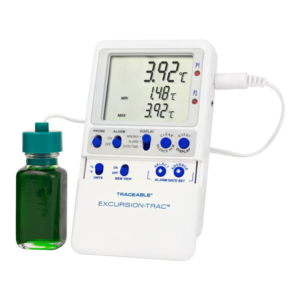

Excursion-Trac™


Memory can be cleared.

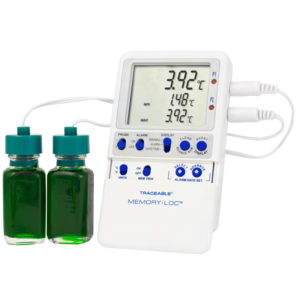

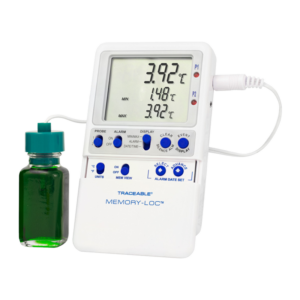

Memory-Loc™


Data is locked (21 CFR 11 compliant).

Relevant Literature

Data Logger Instructional Videos

AC Adapter

Suppressor

Date & Time

Setting °C/°F

Log Interval

Min/Max

Review Data

Downloading

Event History

Alarms

Error Codes

Clearing Memory

Excursion-Trac™ only. Memory cannot be cleared on Memory-Loc™ models.

(click button to go directly to section)

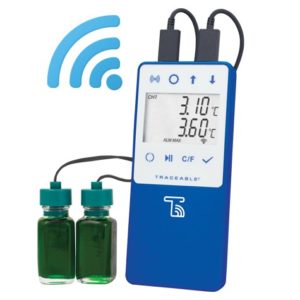

Wi-Fi Data Logging

Cloud-Monitoring Icon
  • Cloud-Based Applications
  • Monitor Locally or Remotely
  • Secure Cloud-Based Storage





    • No local software required; web, Android, iOS data visibility.
    • Connects easily to Wi-Fi and provides continuous data transmission to the cloud-based interface.
    • Connect the App and view current conditions, control alarms, view history, run reports, and so much more.
    • Alerts: temperature alarm, connectivity interruption, low battery.
    • Secure, cloud-based data link.
    • Receive mobile push/e-mail/text notifications.





Temperature Range:
-50° to 60°C (-58° to 140°F)



Resolution: 1°



Accuracy: ±0.25°



Dimensions:
6” x 2.75” x .75” @ 6 oz





Probe/Bottle:
2.5” x 1” bottle w/ sealed probe; 9’ cord



Certificate:
multi-point calibration; individually-numbered


Wi-Fi Data Logger Instructional Videos

Software Instructions

Quick Start Guide
